3.5T Swivel Dumper Mecalac

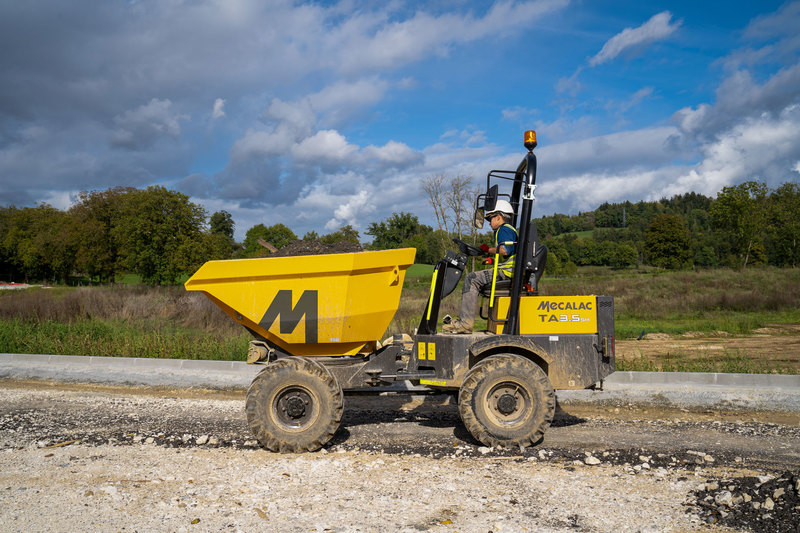

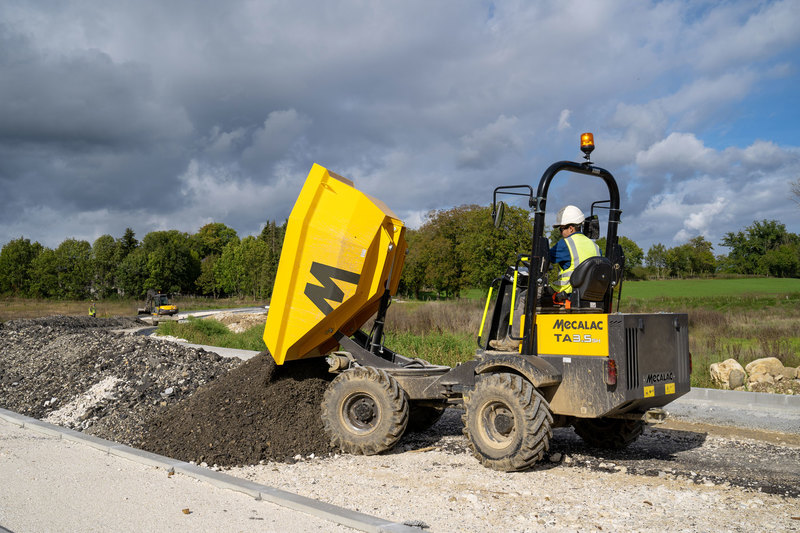

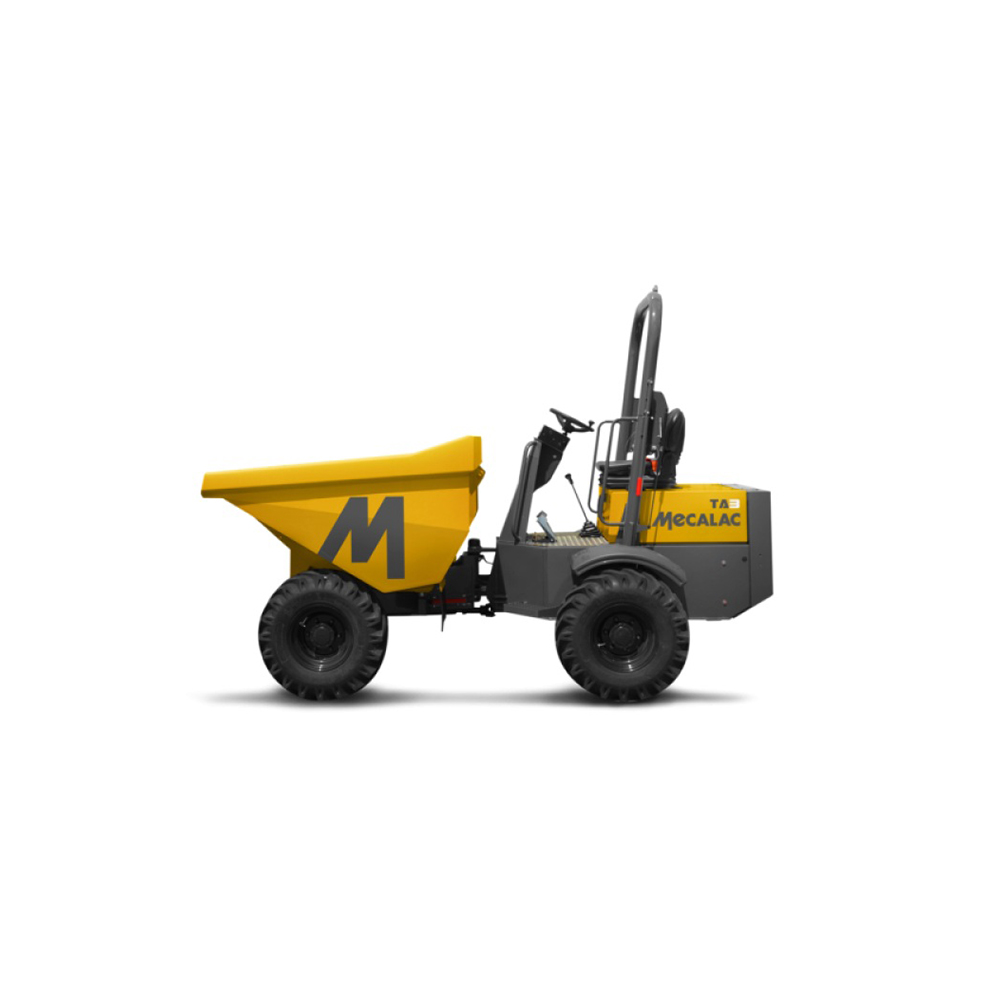

The Mecalac TA3 is a robust 3-tonne site dumper designed for efficient material handling on construction sites. It features a swivel skip for versatile discharge, a powerful diesel engine, and excellent stability, making it ideal for confined or uneven terrain.
SKU: DUM3
| Feature | Specification |
|---|---|
| Model | Mecalac TA3 |
| Type | 3-Tonne Swivel Site Dumper |
| Payload Capacity | 3,000 kg |
| Skip Type | Front Tip or Swivel Tip (TA3SH model) |
| Engine | Kubota D1803-M (Stage V compliant) |
| Engine Power | 18.9 kW (25.3 hp) @ 2,200 rpm |
| Transmission | Hydrostatic |
| Max Travel Speed | 16 km/h |
| Drive | Permanent 4-wheel drive |
| Brakes | Oil-immersed disc brakes |
| Steering | Hydraulic power steering |
| Operating Weight | Approx. 2,450 – 2,750 kg (model dependent) |
| Skip Capacity (Struck) | Approx. 1,290 litres |
| Skip Capacity (Heaped) | Approx. 1,700 litres |
| Dimensions (L x W x H) | ~3,700 x 1,900 x 2,800 mm |
| Ground Clearance | 265 mm |
| Turning Radius | 4.95 m |
