3T Swivel Dumper Thwaites

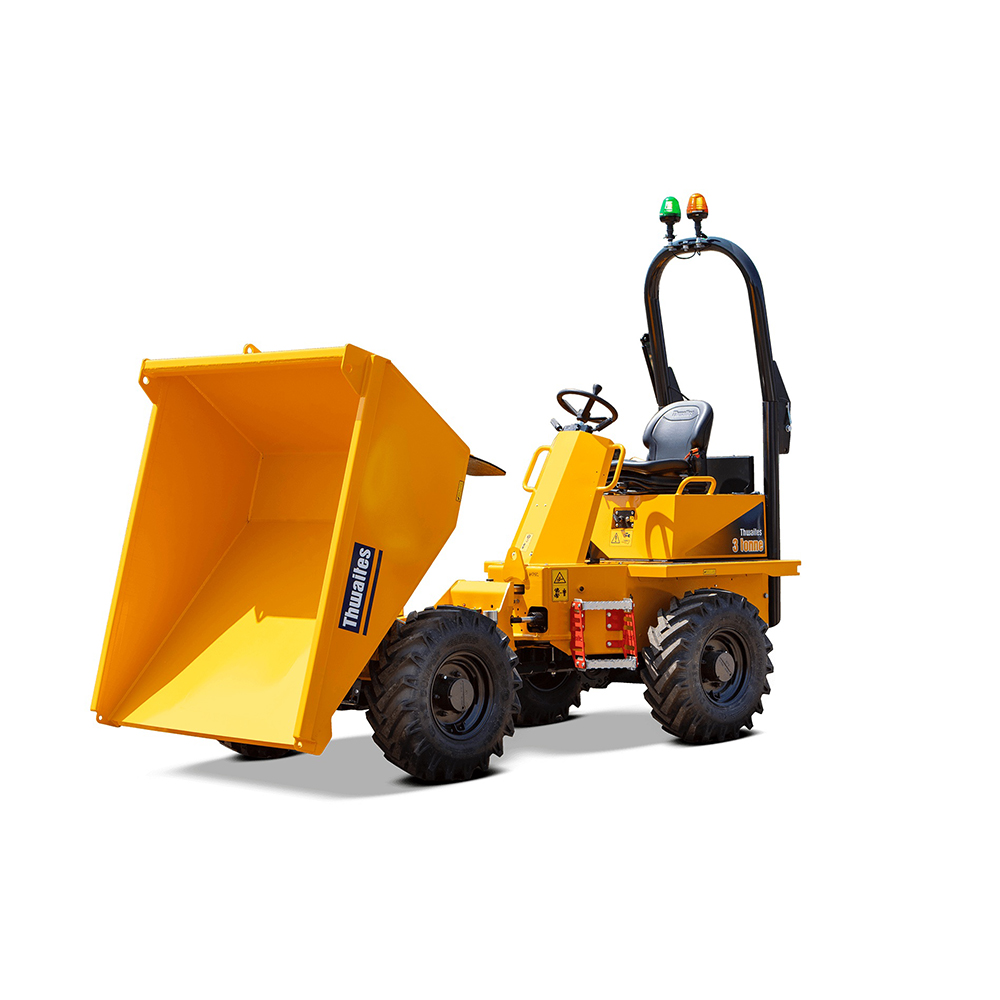

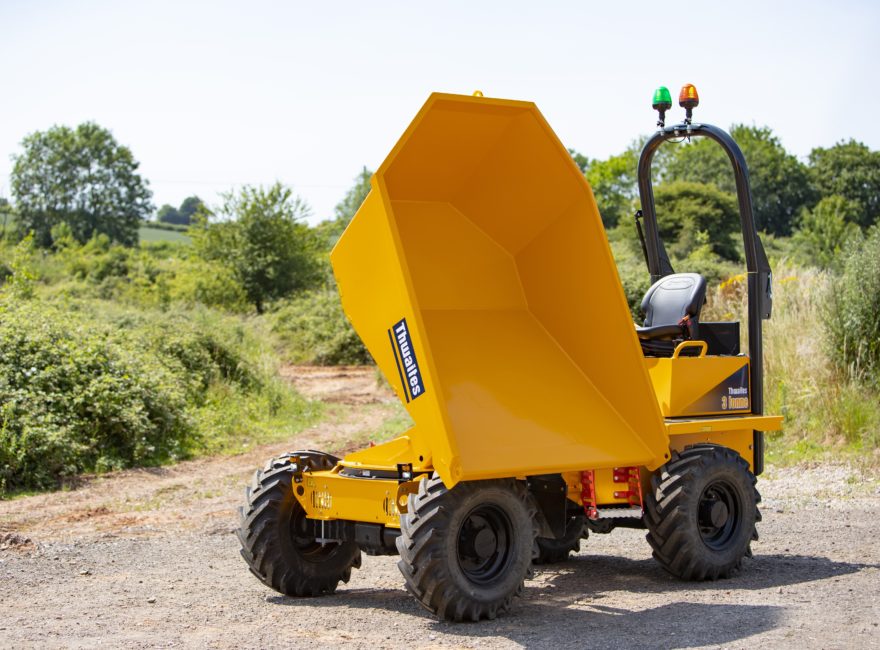

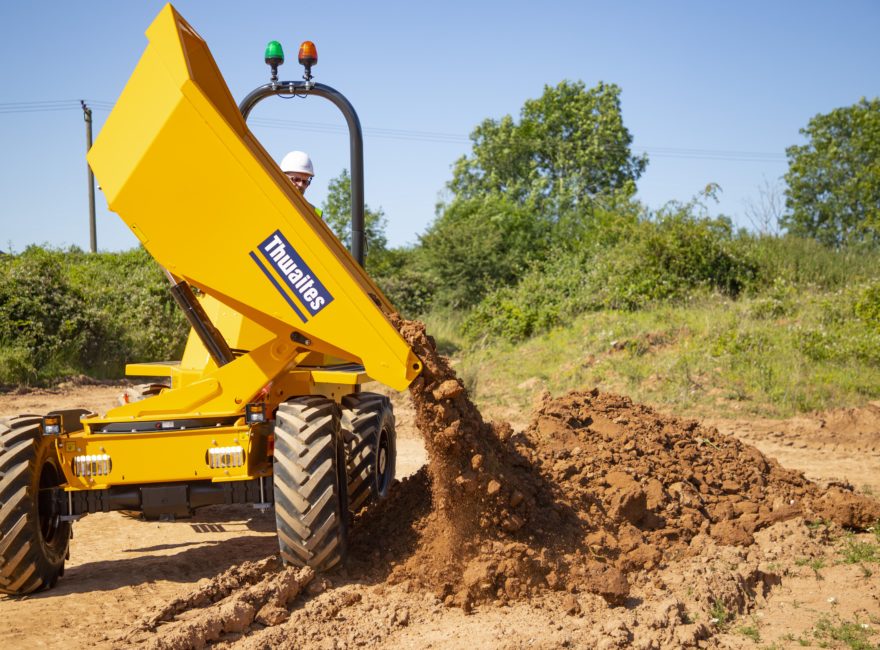

The Thwaites 3 Tonne Swivel Dumper is a robust, 4WD site dumper ideal for tough terrains. With a 3,000 kg payload and swivel tip skip, it offers excellent maneuverability, hydraulic tipping, and reliable performance for efficient material handling.
SKU: TH3T
| Specification | Details |
|---|---|
| Manufacturer | Thwaites |
| Model | 3 Tonne Swivel Dumper |
| Payload Capacity | 3,000 kg |
| Skip Type | Swivel |
| Skip Capacity (Heaped) | Approx. 1.85 m³ |
| Skip Capacity (Struck) | Approx. 1.29 m³ |
| Tipping Mechanism | Hydraulic Swivel Tip |
| Engine | Yanmar 3TNV88 – 3-cylinder diesel |
| Engine Power | 33.3 kW (44.6 hp) @ 2,200 rpm |
| Transmission | Hydrostatic (or Powershuttle, model dependent) |
| Drive | 4WD |
| Max Travel Speed | Up to 24 km/h |
| Brakes | Oil-immersed, multi-disc |
| Steering | Hydraulic power steering |
| Gradeability | Up to 50% |
| Operating Weight | Approx. 2,430 kg – 2,750 kg (model variant dependent) |
| Dimensions (L x W x H) | Approx. 3.9 m x 1.67 m x 2.88 m |
| Turning Radius | Approx. 4.9 m |
| ROPS/FOPS Protection | Standard |
| Noise Level | LwA 101 dB(A) |
